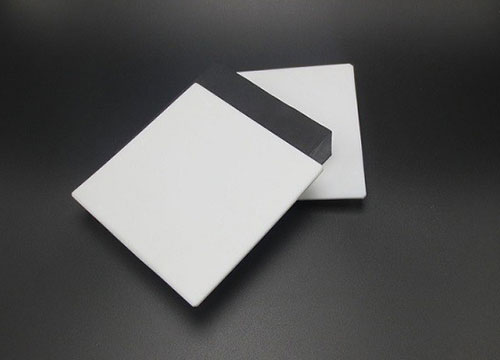

PTFE-SHEET
PTFEhasawiderangeofpracticabletemperaturefrom-180°C-+260°Candawax-likesurfacetowhichanythinghardlyplastics.PTFEhasthelowestcoefficientoffrictionofallknownsolidmaterials.Ithasthebestelectricalpropertie
PTFE has a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly plastics. PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.
1. Skived PTFE Sheet
Thickness from 0.1-6mm
2. Moulded PTFE Sheet
Thickness from 5-100mm
PROPERTIES
ITEM | UNIT | RESULT |
DENSITY | G/CM3 | 2.10-2.30 |
TENSILE STRENGTH | MPA | ≥15.0 |
TEAR ELONGATION | % | 150 |
VOLTAGE | KV/MM | 10 |
SPECIFICATIONS:
PTFE SKIVED SHEET/TAPE | WIDTH(MM) | THICKNESS(MM) | TOLERANCE(MM) |
300-1200MM | 0.2MM-6.5MM | 0.2MM-1MM:0-+0.02MM 1MM-4MM: 0-+15% 4MM-6.5MM: 0-+20% | |
1200MM-1500MM | 0.5MM-5.0MM | ||
1500-2000MM | 1.0MM-4.0MM |
Item | Length (mm) | Width (mm) | Thickness (mm) | Tolerance (mm) |
PTFE Molded Sheet | 300 | 300 | 5-100 | 0~+15% |
500 | 500 | |||
600 | 600 | |||
1000 | 1000 | |||
1200 | 1200 | |||
1500 | 1500 | 5-50 | ||
2000 | 1000 | 5-50 |
Other sizes we can also supply
